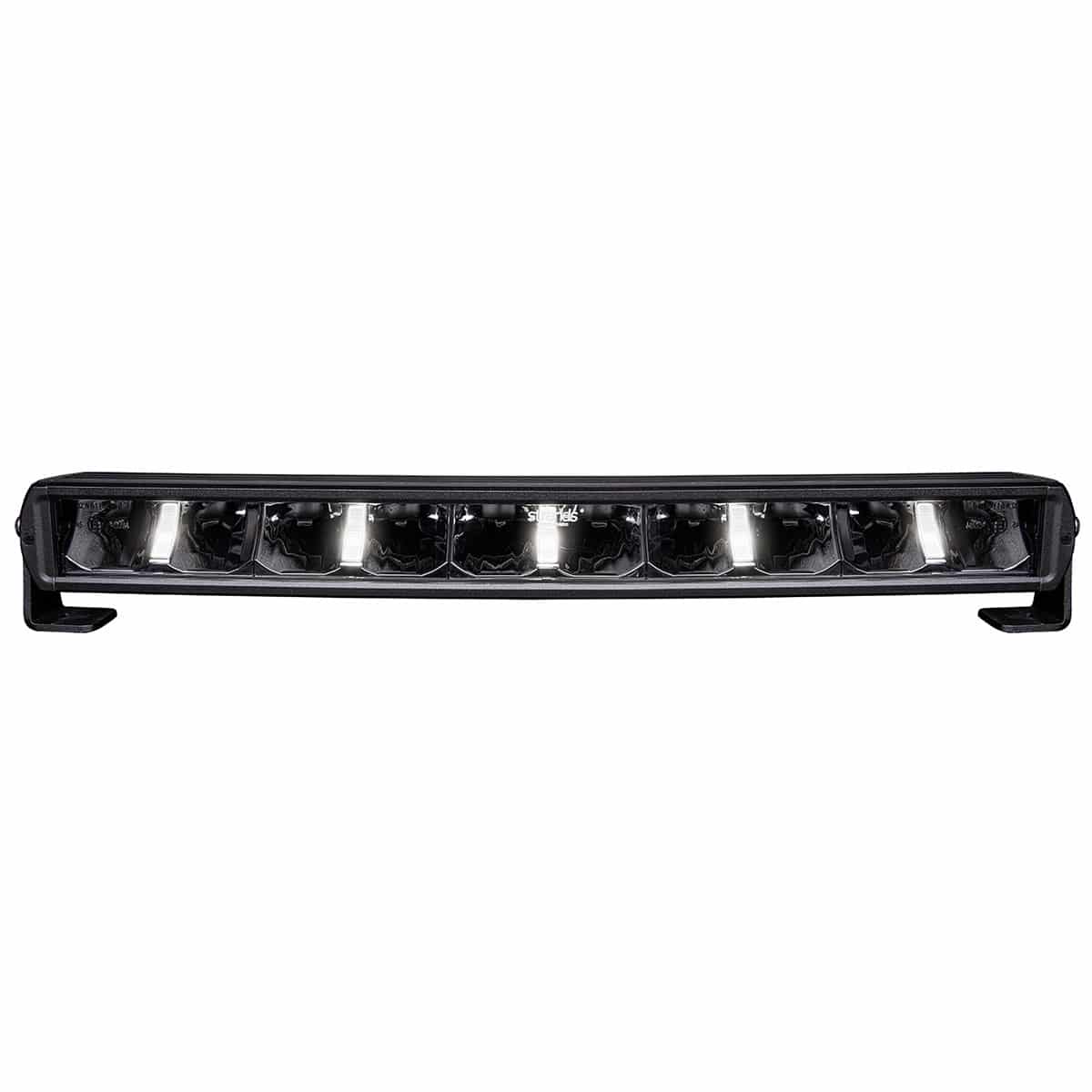

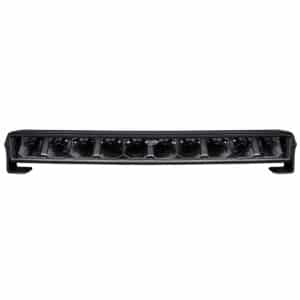

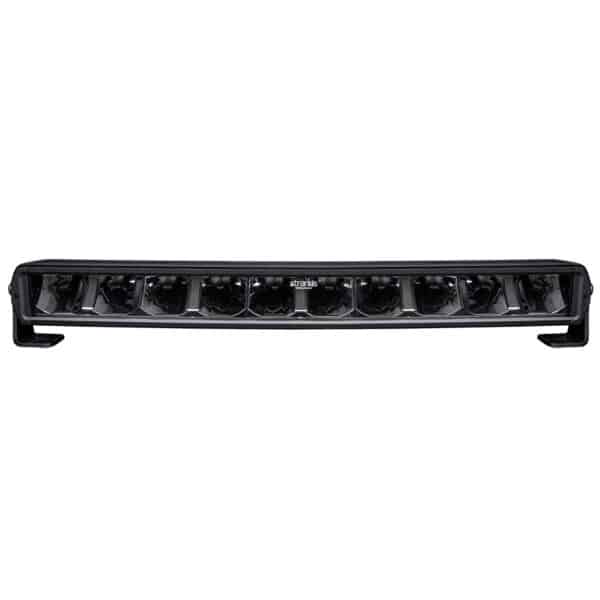

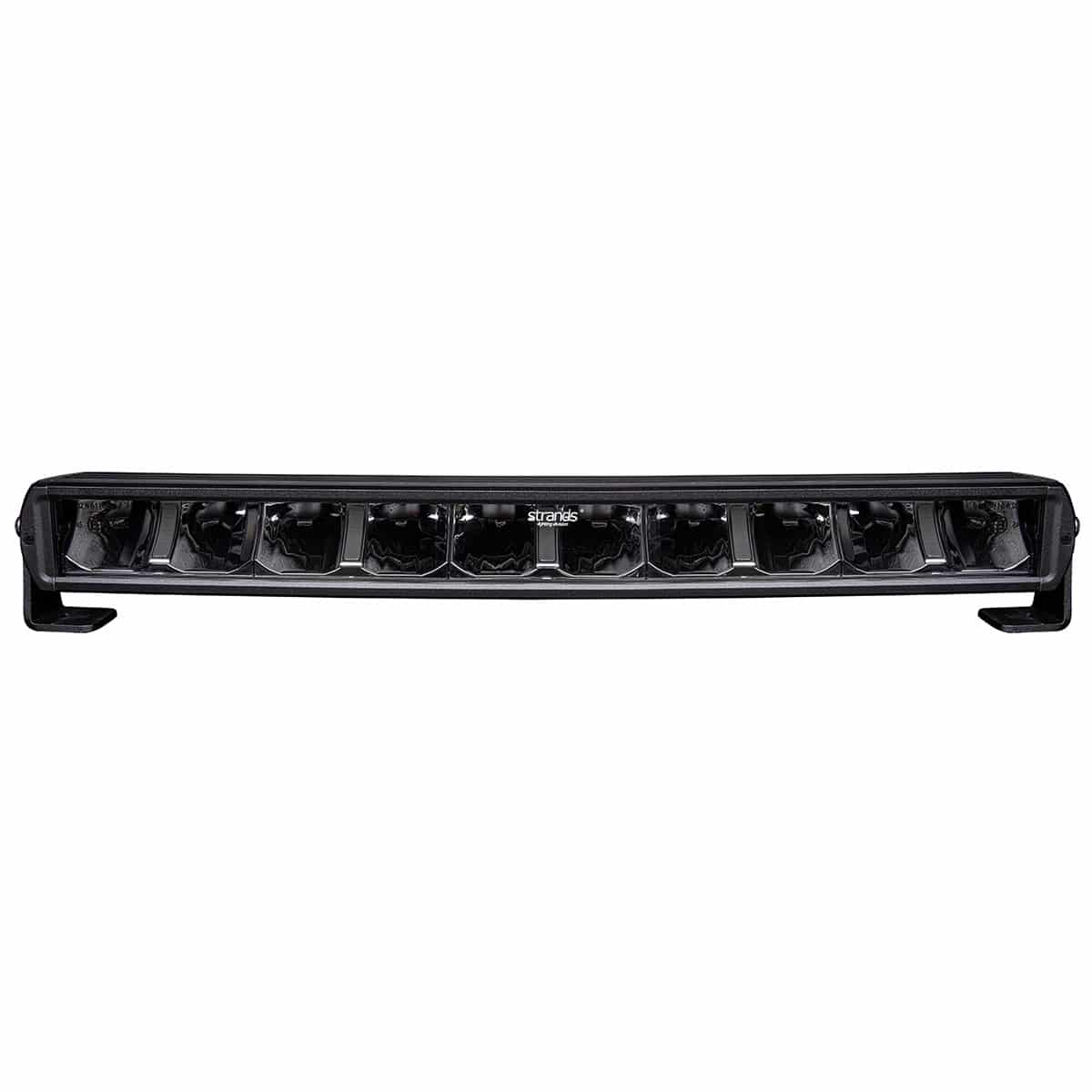

Arcum is a curved LED bar with a slim, modern design. It is developed with the driver and the optimal lighting experience in focus. Arcum’s light beam creates the perfect balance and gives you a safe driving experience with light where you need it most.
- E-APPROVED ACCORDING TO ECE R112
- 1 LUX AT 480 METERS
- 500 MM CABLE
- CURVED SHAPE

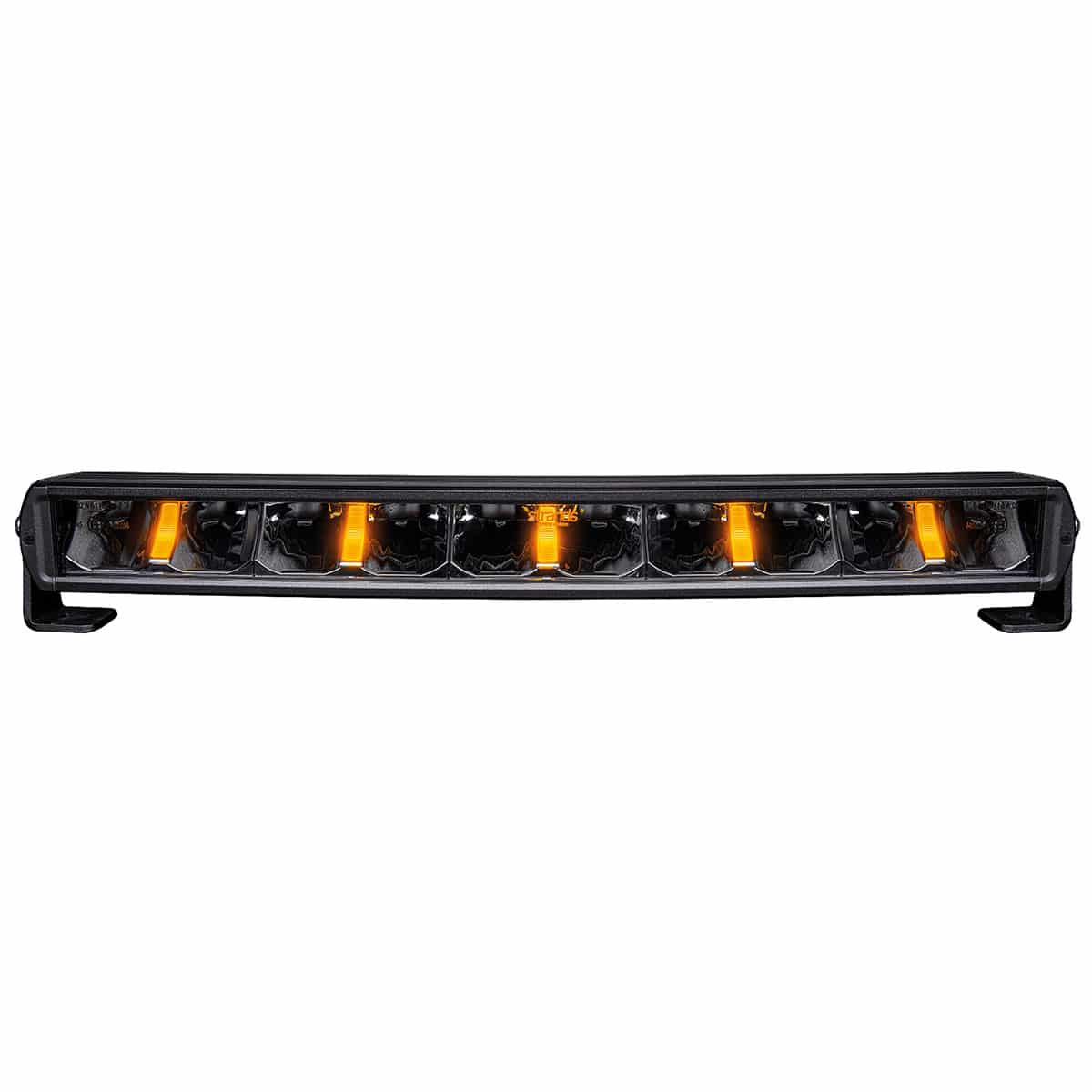

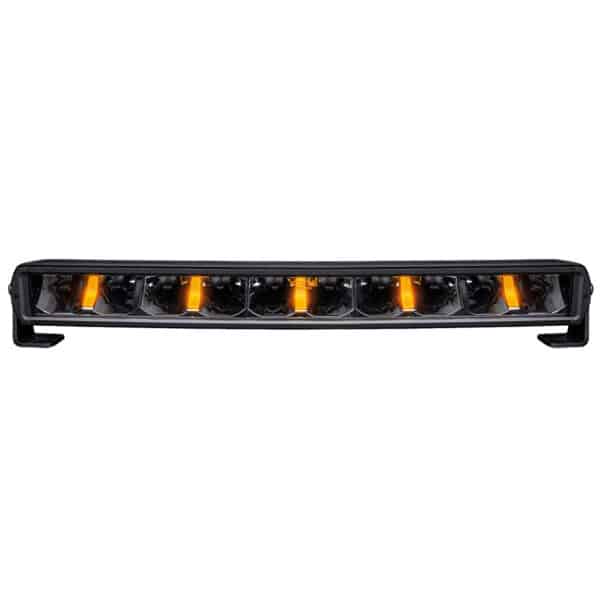

- DUAL POSITION LIGHT
Installation specifications
- Black cable – (Negative)
- Red cable + (Positive)
- White cable + White Position light(Positive)
- Yellow cable + Amber Position light(Positive)
- Mounting details included Screws. washers. bolts
| Μάρκα | Strands |
|---|---|
| Lumen | 8075 |
| Φώς θέσης | Ναί |
| Χρώμα φώς θέσεως | Λευκό, Πορτοκαλί |
| 1 Lux at meters | 425 |
| Εγγύηση | 3 Χρόνια |
Τεχνικές Προδιαγραφές
| TYPE OF LAMP | LED |
| TYPE OF LED | ETI |
| PCS LED´S | 10 |
| VOLTAGE (V DC) | 9-36V DC |
| CONSUMPTION (W) 12V | 78 |
| CONSUMPTION (W) 24V | 75 |
| THEORETICAL LUMEN | 9500 |
| ACTUAL LUMEN | 8075 |
| 1 LUX AT METERS | 425 |
| KELVIN | 6500 |
| IP-CLASS | 68/69K |
| COLOUR HOUSING | Black |
| COLOUR LENS | Clear |
| COLOUR LED´S | Amber, White |

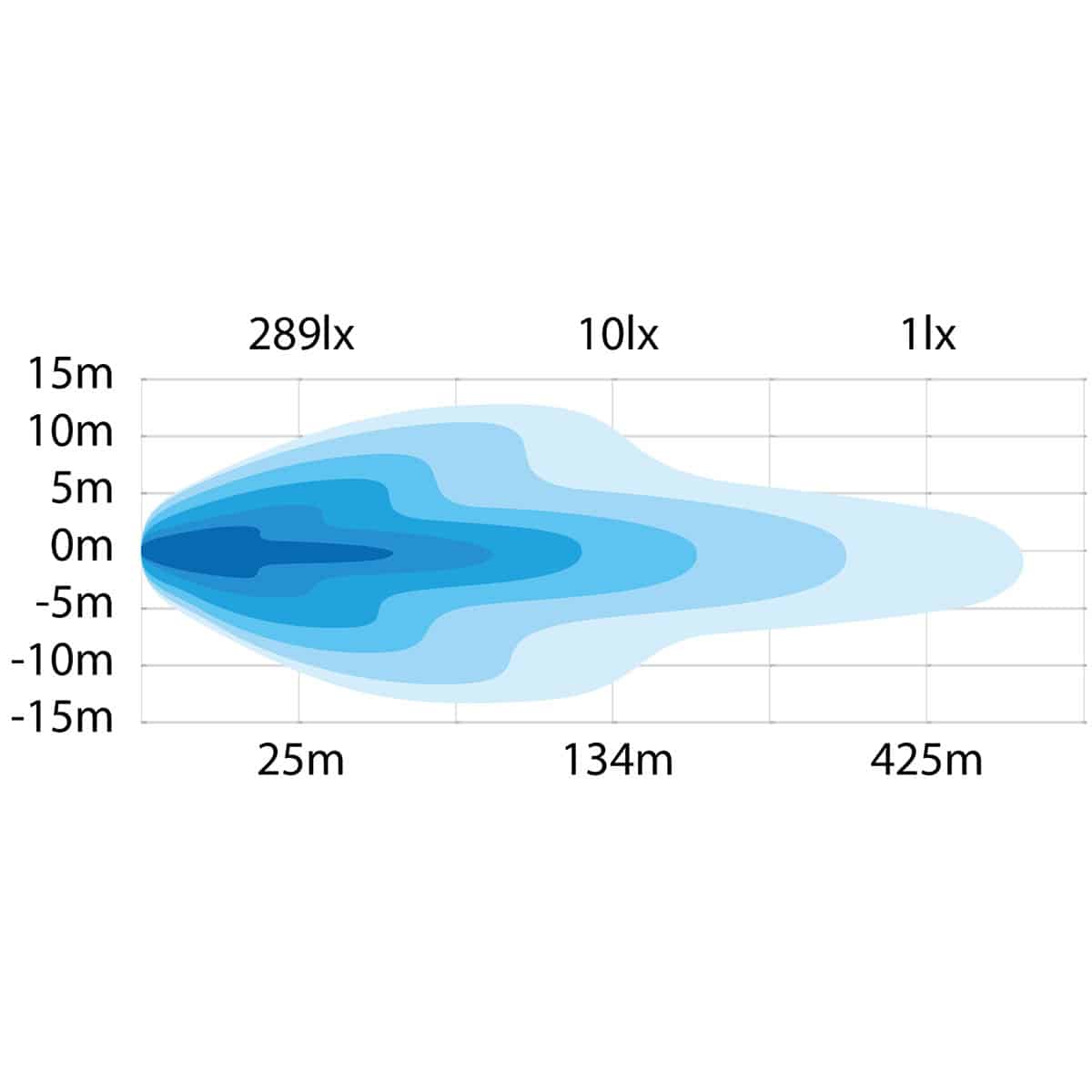

| BEAM PATTERN | Combo |
| POSITION LIGHT | Yes amber and white |
| CONNECTION | DT-4 |
| CABLE LENGTH (MM) | 500 |
| MATERIAL BRACKET | Stainless steel |
| MATERIAL HOUSING/CHASSI | Aluminium |
| MATERIAL LENS | Polycarbonate |
| LENGTH (MM) | 523 |
| DEPTH (MM) | 73 |
| HEIGHT (MM) | 56 |
| HEIGHT INCLUDING BRACKET (MM) | 79 |
| OPERATING TEMPERATURE | -40 – +60°C |
| ADR-APPROVED | No |
| E-APPROVED | Yes |
| ACCORDING TO REGULATION | ECE R7, ECE R112 |
| REFERENCE NUMBER | 45 |
| EMC | ECE R10 |
